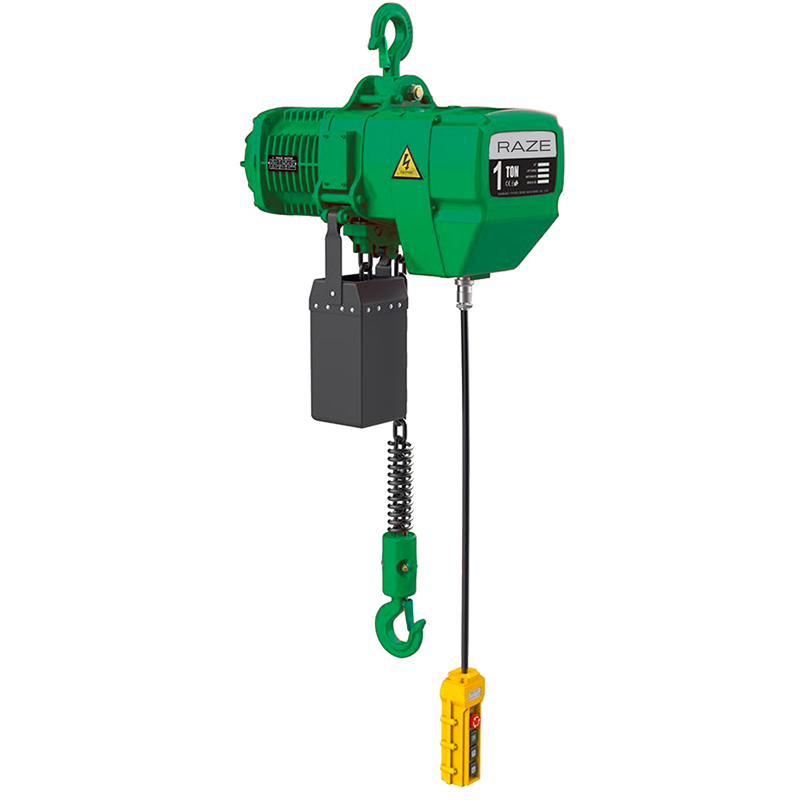

RAZE PRO-V2 Electric Chain Hoist

Dual Speed- 17/6 FPM
Grade 80 case hardened alloy steel chain
Aluminum alloy casting, features rigid structure and light weight
Motor framed with radiant cooling fins for heat dissipation, permits (dual speed 40/20%, 15%) duty cycle
Electro-Magnetic Brake Controller, features simultaneous braking upon release of P.B. even under full load
Limit Switch - Fitted at both top and bottom ends, shuts off power automatically to prevent load chain from running out
Mechanical Brake - Advanced design, assures secure braking even under overload. In conjunction with motor brake, features “DOUBLE BRAKE SYSTEM” for safety and durability in hoist operation
Power to pendant control reduced to 24V or 48V for safer operation
Magnetic Contactor - High performance non-fuse circuit breakers allow frequent trouble cycling with free operation
Phase Error Relay - A specially designed electric board prevents motor from running at reversed phased
